Introduction
SafeRack, LLC manufactures industrial safety and terminal loading systems. It offers long platform systems, fall protection systems, spill containment products, gangways/loading ramps, loading arms/racks and holders, specialty products, safety swing gates, safety cages, shelters and canopies, and etc.
We build it by putting the people who use our racks first. We continually invest in and create technology that allows us to better meet the needs of our customers, and we never stop looking for ways to improve our products and services. We are not looking for a medal; we just want your business and we want it for the long haul.
This solution can combine a new platform with track or just the track section retrofitted to your existing platform.
The track mounted gangway slide horizontally to the location requiring access on top of the truck or railcar.
This solution is popular with multiple lengths of railcars and multi-compartment hatches on trucks.
Operators open swing gates anywhere along the track, Single or multiple gangways can be used on the same track based on your requirements.
Track sections are designed in 3' increments.
Gangway for Road Tanker
GANGWAY FOR ROAD TANKER - SAS GANGWAY
SafeRack SAS (Self-Adjusting Stair) gangway design incorporates stair treads that articulate and self-level to accommodate varying heights of vehicles. Working range of gangway is 40 degrees below to 45 above horizontal. This model is available in 24", 36", 48", 60" and 72" widths as well as 3', 4', 5' and 6' and 7' lengths. Material of construction is your choice of aluminium or stainless steel. All models come standard with a hot-dipped galvanised base tread.
GANGWAY FOR ROAD TANKER - SFR GANGWAY
This model is a flat ramp model with a slip-resistant walk surface. It features a simple flat ramp design. Popular for hopper car and a few truck applications, its simple design works well when the platform height and the vehicle height are equal to each other. Its working range is 15 degrees above and below horizontal. Available in 24", 36", 48", 60" and 72" widths as well as 3' , 4' , 5' , 6' and 7' lengths. Material of construction is your choice of aluminum or stainless steel. All models come standard with a hot-dipped galvanized steel base tread.
GANGWAY FOR ROAD TANKER - FRT GANGWAY
This model is a flat ramp model with a slip-resistant walk surface. It features a telescoping extension on the end. Popular for railcar applications, it reaches wide tank cars without the need for the telescoping extension, and the use of the extension eliminates gaps on narrow railcars. Telescoping top handrails come on all models without safety cage option. Available in 24", 36", 48", 60" and 72"widths as well as 3', 4' , 5' , 6' and 7' lengths. Your choice of materials of construction is aluminum, galvanized steel, or stainless steel.
Tank Truck Elevating System the Quadspan
TANK TRUCK ELEVATING SYSTEM - THE QUADSPAN
The Quadspan is a self-supporting traveling platform system housed within a four column steel structure. The steel columns serve as structural supports as well as an integral,
anti-sway guide system for the
traveling platform.
The Quadspan is versatile and
can be constructed in multiples to accommodate several vehicles at one time to speed the loading process.
The Quadspan is the flagship of the Osborn designs. Through engineering ingenuity it provides the solution to complex loading problems.
Portable Access Equipment

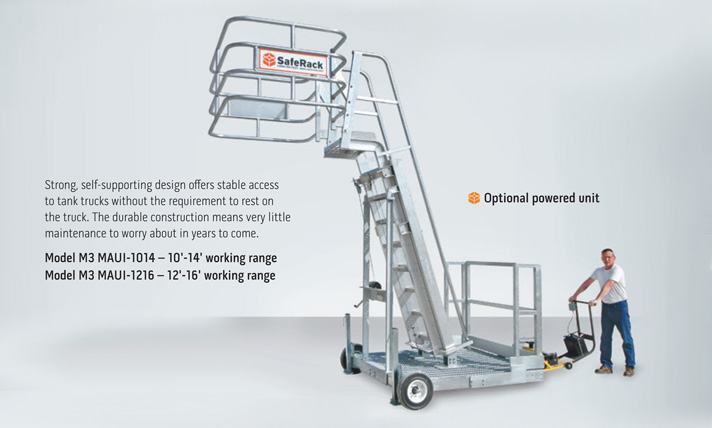

PORTABLE ACCESS EQUIPMENT - PORTABLE ACCESS FOR TRUCK
PORTABLE ACCESS EQUIPMENT - PORTABLE ACCESS FOR RAILCAR
Safety Equipments
SAFETY EQUIPMENTS
Marine Gangway
MARINE GANGWAY
